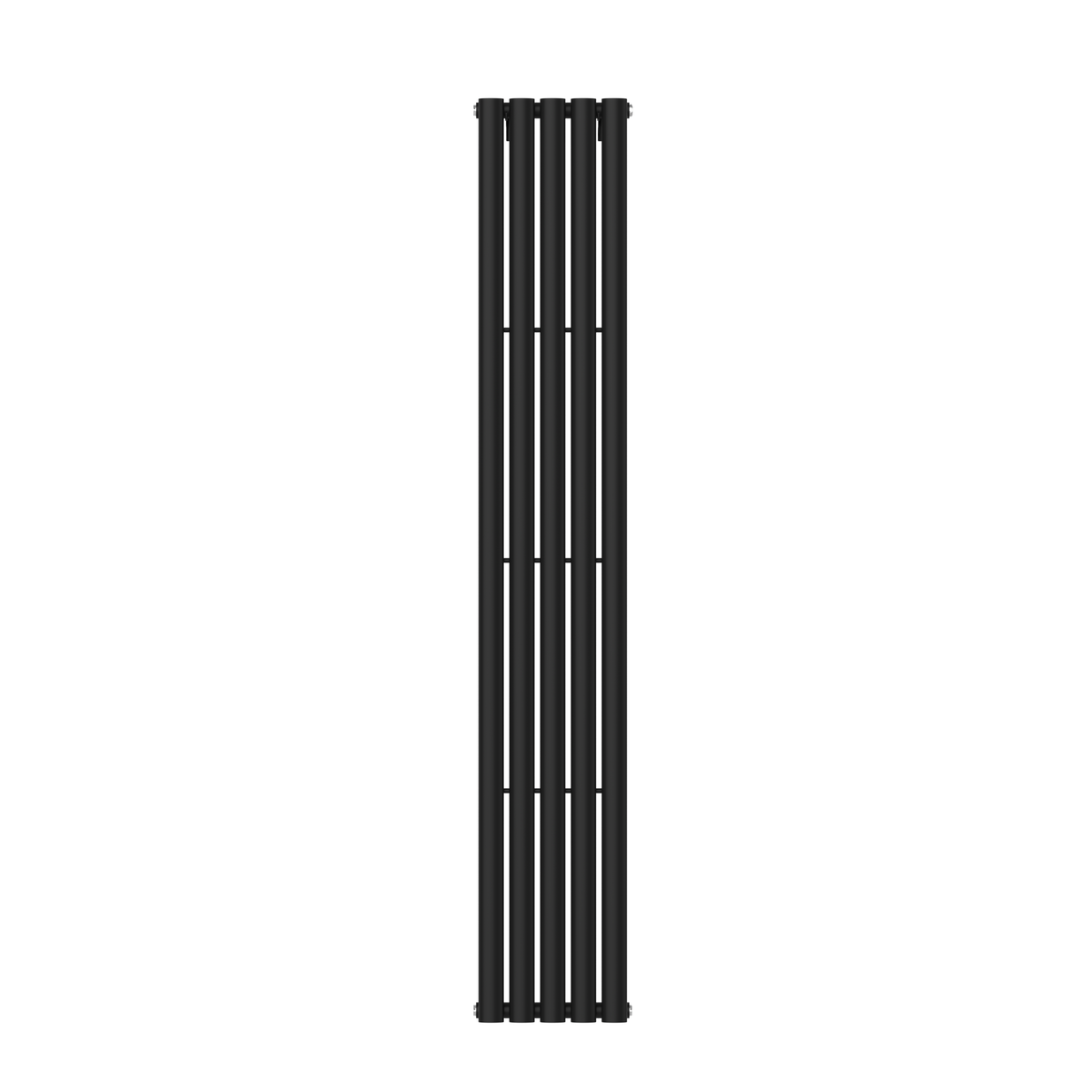

Asola Black Vertical Oval Tube Designer Radiator – Single Panel – 1800x300mm

Asola Black Vertical Oval Tube Designer Radiator – Single Panel – 1800x420mm

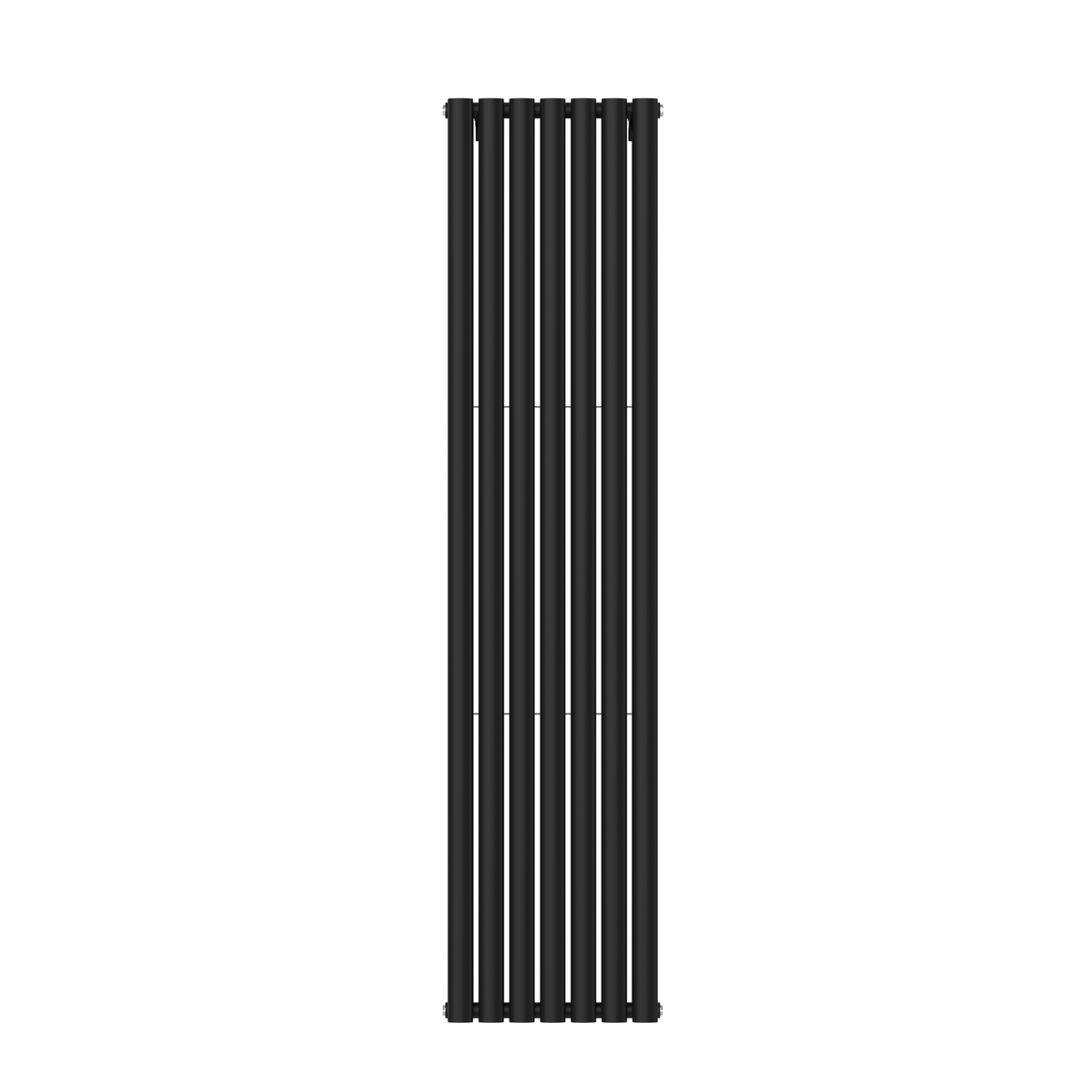

Asola Black Vertical Oval Tube Designer Radiator – Single Panel – 1800x540mm

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Asola Black Vertical Oval Tube Designer Radiator – Single Panel

Name: Asola Black Vertical Oval Tube Designer Radiator – Single Panel
Brand: Kartell
SKU: ASP18-31VSB
Price: 221.99 GBP
Availability: InStock

Colour:Black

Panels:Single Panel

Height x Width: 1800x300mm

Variant

Save 41%

Price:

£221.99 RRP £378.00 Save£156.01

You'll needValves and fittings, matched to your Matt Black finish where we have it

Valves Designer Thermostatic Radiator Valve Twin Pack with Lockshield – Matt Black £45.99

Optional: pipe sleeves 15mm Radiator Pipe Sleeves & Rosettes (Pair) – Matt Black £18.99

Secure checkout

Free delivery over £500

Rated Excellent

Get It Friday Order in 21 hours and 4 minutes

Free 2 day delivery on radiators

Pallet Delivery (Tiles & SPC)

Delivered on a pallet (kerbside only). Driver cannot unpack or move goods inside.

Damage / Incorrect Delivery

Notify us within 2 working days of delivery for replacements or refunds. Please provide photos while items are still on the pallet. If you added Extended Delivery Protection (£9.99), you have 4 working days. Do not dispose of goods or packaging.

Email: sales@tilesparadiseuk.com

Check Before Installation

Please inspect all tiles before cutting or installation. Claims cannot be accepted after cutting or installation. We recommend ordering a minimum 10% extra for cuts and wastage.

Returns (Change of mind)

You may cancel your entire order within 14 days of delivery. Returns must be unused, in original packaging and re-saleable. Tile & SPC returns are subject to a handling/restocking fee. No returns on leftovers.

View full policies: Delivery, Damages & Returns

Product InformationSpecificationWhat's in the box

Asola is built from oval steel tubes that give a soft, rounded, contemporary look, in single or double depths for more heat. A black finish turns the radiator into a design feature, striking against white, grey or boldly painted walls.

Choose from 3 sizes with outputs from 2,392 to 4,309 BTU/hr at ΔT60, so you can match the radiator to the room. It is made from mild steel oval tubes, pressure tested to 7.8 bar and supplied with everything needed to fix it to the wall. Radiator valves are sold separately.

Specification

Finish	Black
Material	Steel
Orientation	Vertical
Panels	Single
Depth	55mm
Connections	1/2" BSP tappings
Pressure	Tested to 7.8 bar
Valves	Sold separately
In the box	Radiator, wall fixings
Guarantee	5 year manufacturer guarantee

Sizes and heat outputs

Size (H x W)	Output BTU/hr (ΔT60)	Output watts (ΔT60)	Weight
1800x300mm	2,392	701	10.56kg
1800x420mm	3,368	987	16.51kg
1800x540mm	4,309	1,263	21.12kg

Outputs are quoted at ΔT60, the manufacturer's test standard. Many UK comparisons use ΔT50, which gives a lower figure (roughly a fifth less), so allow a little extra output when sizing for a modern low-temperature or heat pump system.

Frequently asked questions

How do I choose the right size?
Work out the heat your room needs with a BTU calculator (it depends on room size, windows and insulation), then pick a size whose output meets or slightly exceeds it. If you are running a lower flow temperature, allow extra.

Which valves do I need?
You will need a pair of 15mm radiator valves. For a matching look choose manual modern radiator valves in matt black or thermostatic control with the designer TRV twin pack in matt black. See all radiator valves.

Other finishes?
Also available in textured grey and white.

Other versions?
The same design also comes as a vertical oval tube designer radiator (double), horizontal oval tube designer radiator (double) and horizontal oval tube designer radiator (single).

Specification

Type: Radiator
Panels: Single Panel
Heating type: Central Heating
Valve style: Angled or Straight
Connection size: 1/2" BSP
Guarantee: 5 year manufacturer guarantee

What's in the box

Radiator
Wall fixings

Help choosing

Size a radiator by heat output (BTU), not by how it looks on the wall.

How much heat does your room need?

Length (m) Width (m) Height (m) Room Windows Outside walls

Enter your room size to see the heat output you need.

Match the output to the room. Use the BTU figure from the calculator. In a bathroom, a towel rail alone often heats a small room; bigger rooms may need a radiator too.
Check your connections. Measure the gap between your pipes and choose valves to suit: angled, straight or corner (see the valve helper on our valve pages).
Heat pump? At the lower water temperatures heat pumps run at, expect roughly half the listed output.
Summer use. Central heating rails only warm up when the heating is on. A dual fuel kit adds an electric element where the rail supports it.

Still not sure? Send us your measurements and we'll check for you.

Questions people ask

What does BTU mean?

BTU (British Thermal Units) is the heat output. The higher the figure, the more heat it gives. Use the calculator under Help choosing to see what your room needs. Outputs are quoted at ΔT50.

How much heat do I need?

As a rough guide allow around 100W per square metre of floor in an average room, and more for older properties, high ceilings, large windows or north-facing rooms. Outputs are quoted at ΔT50.

Are valves included?

Radiators are supplied without valves unless the description says otherwise. Add a pair to suit your pipework.

Will it work with a heat pump?

Yes, but heat pumps run at lower water temperatures, so a radiator gives out roughly half its ΔT50 figure. Size up accordingly.

What are pipe centres?

The distance between the two connections. Measure between your pipes and compare it with the pipe centres, allowing for the valves.
