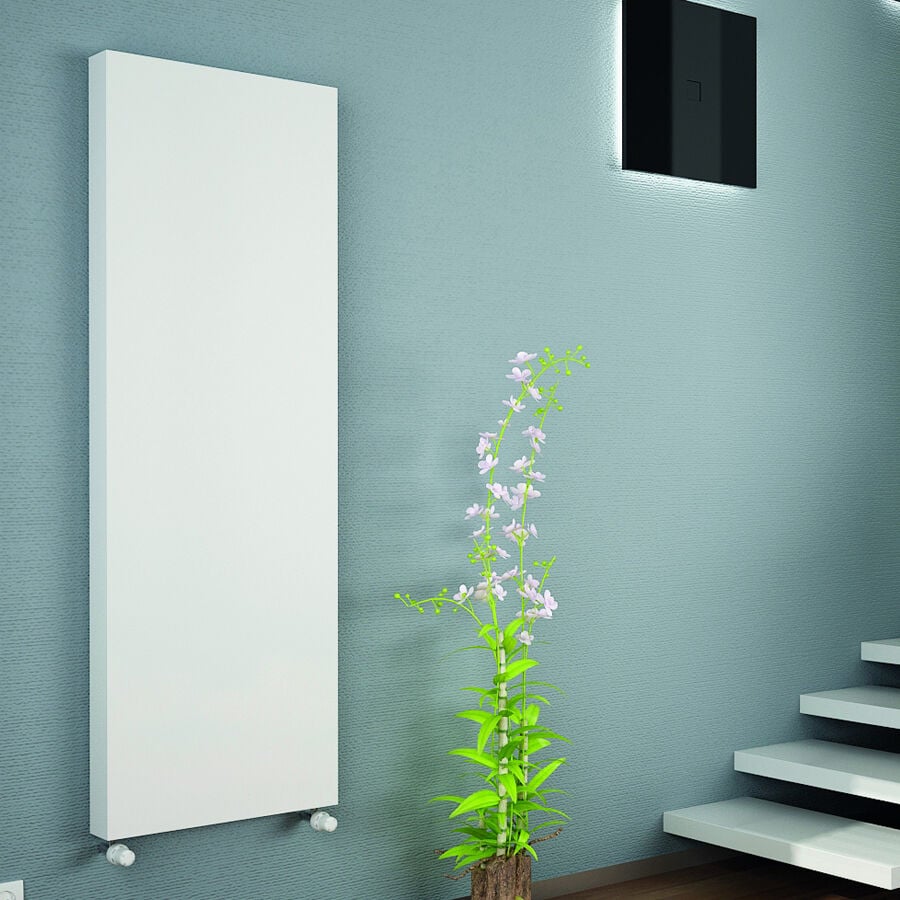

A vertical flat panel radiator puts the heat on a narrow strip of wall, perfect beside a door or in an alcove where a long horizontal radiator won't fit. This Vertical Flat Panel Radiator Type 20 is a double panel model in white.
Choose from 5 sizes with outputs from 2,774 to 5,521 BTU/hr at ΔT60, so you can match the radiator to the room. It is finished in RAL 9016 bright white and pressure tested to 13 bar, so it is suitable for combi, system and conventional boilers. Radiator valves are sold separately.
Specification
| Finish | White |
| Material | Steel |
| Orientation | Vertical |
| Type | Type 20 (double panel) |
| Depth | 72.5mm |
| Connections | 1/2" BSP tappings |
| Pressure | Tested to 13 bar |
| Outputs | Tested to EN 442 |
| Valves | Sold separately |
| In the box | Radiator, wall brackets and bolts, air vent and blanking plug |
| Guarantee | 10 year manufacturer guarantee |
Sizes and heat outputs
| Size (H x W) | Output BTU/hr (ΔT60) | Output watts (ΔT60) | Pipe centres | Weight |
|---|---|---|---|---|
| 1800x300mm | 2,774 | 813 | 245mm | 23.04kg |
| 1800x400mm | 3,709 | 1,087 | 345mm | 31.68kg |
| 1800x500mm | 4,603 | 1,349 | 445mm | 36.48kg |
| 1800x600mm | 5,521 | 1,618 | 545mm | 43.2kg |
| 2000x400mm | 4,159 | 1,219 | 345mm | 34.56kg |
Outputs are quoted at ΔT60, the manufacturer's test standard. Many UK comparisons use ΔT50, which gives a lower figure (roughly a fifth less), so allow a little extra output when sizing for a modern low-temperature or heat pump system.
Frequently asked questions
How do I choose the right size?
Work out the heat your room needs with a BTU calculator (it depends on room size, windows and insulation), then pick a size whose output meets or slightly exceeds it. If you are running a lower flow temperature, allow extra.
Which valves do I need?
You will need a pair of 15mm radiator valves. For a matching look choose manual modern radiator valves in white or thermostatic control with the designer TRV twin pack in white. See all radiator valves.
Need more or less heat?
Try the Type 10 version. More panels and convectors mean more heat from the same wall space.
- Type: Radiator
- Panels: Double Panel
- Heating type: Central Heating
- Valve style: Angled or Straight
- Connection size: 1/2" BSP
- Guarantee: 10 year manufacturer guarantee
- Radiator
- Wall brackets and bolts
- Air vent and blanking plug
Help choosing
Size a radiator by heat output (BTU), not by how it looks on the wall.
Enter your room size to see the heat output you need.
- Match the output to the room. Use the BTU figure from the calculator. In a bathroom, a towel rail alone often heats a small room; bigger rooms may need a radiator too.
- Check your connections. Measure the gap between your pipes and choose valves to suit: angled, straight or corner (see the valve helper on our valve pages).
- Heat pump? At the lower water temperatures heat pumps run at, expect roughly half the listed output.
- Summer use. Central heating rails only warm up when the heating is on. A dual fuel kit adds an electric element where the rail supports it.
Still not sure? Send us your measurements and we'll check for you.
Questions people ask
What does BTU mean?
How much heat do I need?
Are valves included?
Will it work with a heat pump?
What are pipe centres?
