Name: Type 22 Flat Panel Radiator – Double Panel Double Convector, White
Brand: Kartell
SKU: KD406F
Price: 178.99 GBP
Availability: InStock

Save

43%

Type 22 Flat Panel Radiator – Double Panel Double Convector, White

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Pallet Delivery (Tiles & SPC)

Delivered on a pallet (kerbside only). Driver cannot unpack or move goods inside.

Damage / Incorrect Delivery

Notify us within 2 working days of delivery for replacements or refunds. Please provide photos while items are still on the pallet. If you added Extended Delivery Protection (£9.99), you have 4 working days. Do not dispose of goods or packaging.

Email: sales@tilesparadiseuk.com

Check Before Installation

Please inspect all tiles before cutting or installation. Claims cannot be accepted after cutting or installation. We recommend ordering a minimum 10% extra for cuts and wastage.

Returns (Change of mind)

You may cancel your entire order within 14 days of delivery. Returns must be unused, in original packaging and re-saleable. Tile & SPC returns are subject to a handling/restocking fee. No returns on leftovers.

View full policies: Delivery, Damages & Returns

Product InformationSpecificationWhat's in the box

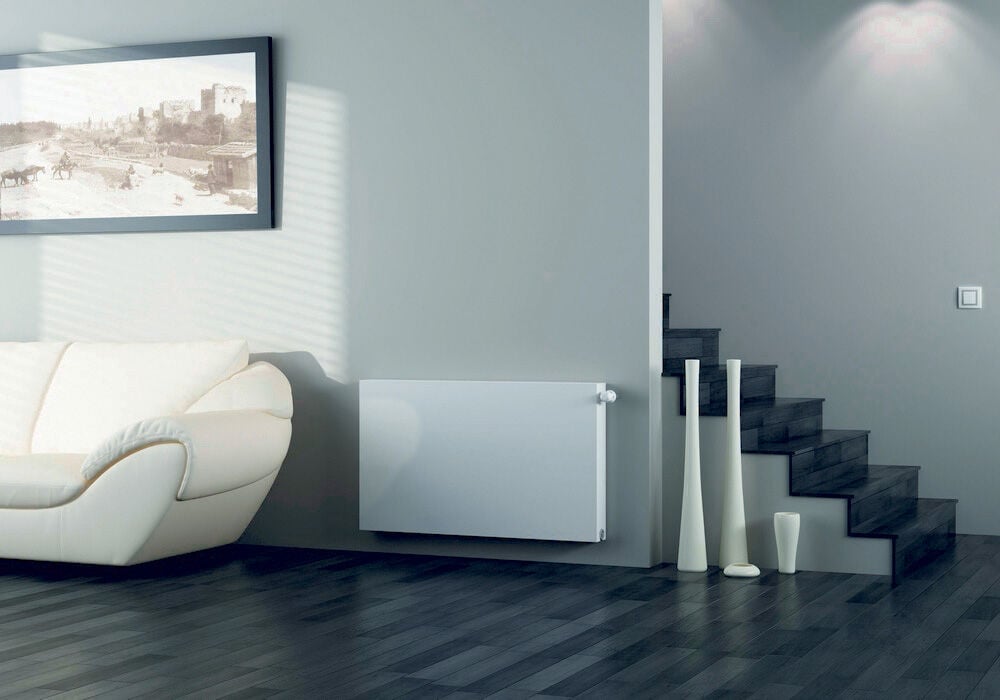

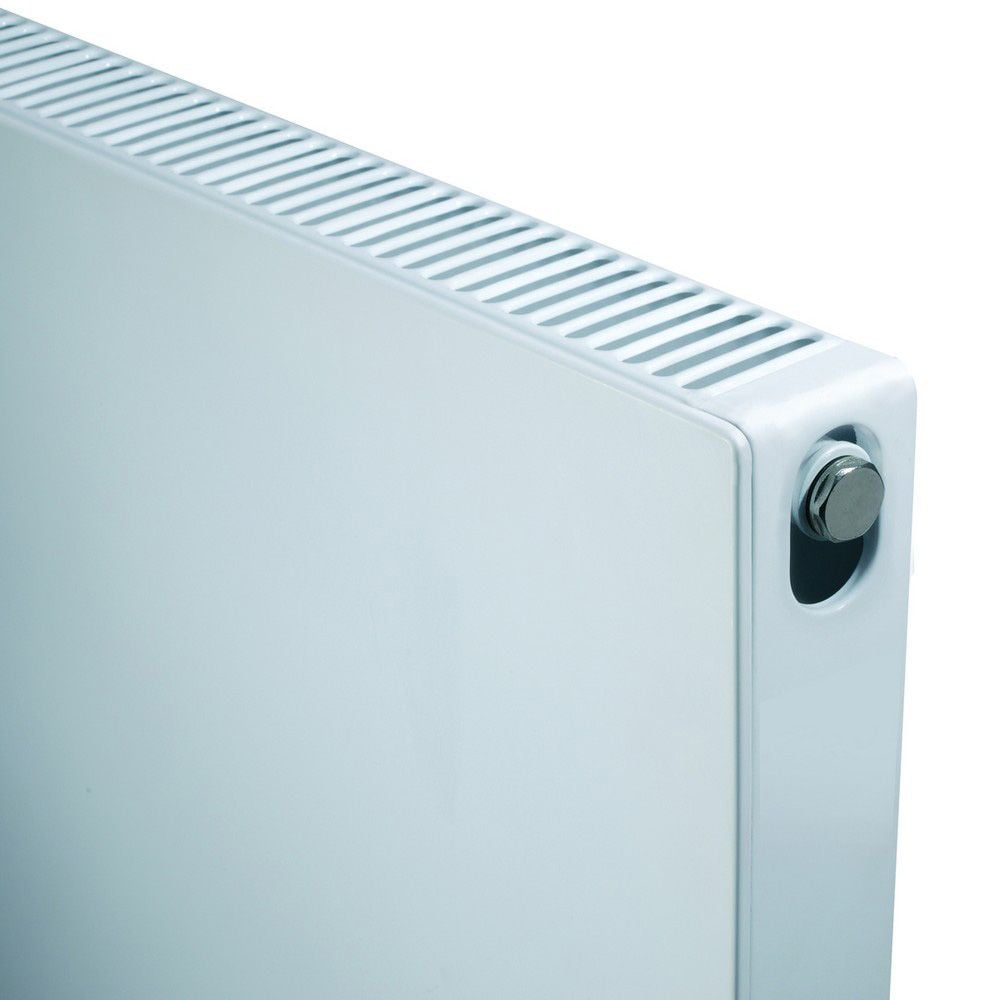

A flat panel radiator gives you all the output of a standard panel with a smooth, flat front, so it looks neater and more modern on the wall. This Type 22 Flat Panel Radiator is a double panel double convector model in white.

Choose from 22 sizes with outputs from 2,499 to 14,379 BTU/hr at ΔT60, so you can match the radiator to the room. It is finished in RAL 9016 bright white and pressure tested to 13 bar, so it is suitable for combi, system and conventional boilers. Radiator valves are sold separately.

Specification

Finish	White
Material	Steel
Orientation	Horizontal
Type	Type 22 (double panel double convector)
Depth	105mm
Connections	1/2" BSP tappings
Pressure	Tested to 13 bar
Outputs	Tested to EN 442
Valves	Sold separately
In the box	Radiator, wall brackets and bolts, air vent and blanking plug
Guarantee	10 year manufacturer guarantee

Sizes and heat outputs

Size (H x W)	Output BTU/hr (ΔT60)	Output watts (ΔT60)	Weight
400x600mm	3,133	918	13.54kg
400x800mm	4,178	1,225	18.05kg
400x1000mm	5,222	1,530	22.56kg
400x1200mm	6,266	1,836	27.07kg
400x1400mm	7,311	2,143	31.68kg
400x1600mm	8,355	2,449	36.1kg
500x400mm	2,499	732	11.14kg
500x600mm	3,748	1,098	16.7kg
500x800mm	4,997	1,465	22.18kg
500x1000mm	6,247	1,831	27.74kg
500x1200mm	7,496	2,197	33.31kg
500x1400mm	8,746	2,563	38.88kg
500x1600mm	9,995	2,929	44.45kg
600x400mm	2,876	843	13.15kg
600x600mm	4,314	1,264	19.87kg
600x800mm	5,752	1,686	26.4kg
600x1000mm	7,190	2,107	33.02kg
600x1200mm	8,627	2,528	39.65kg
600x1400mm	10,065	2,950	46.27kg
600x1600mm	11,503	3,371	52.9kg
600x1800mm	12,941	3,793	59.42kg
600x2000mm	14,379	4,214	66.05kg

Outputs are quoted at ΔT60, the manufacturer's test standard. Many UK comparisons use ΔT50, which gives a lower figure (roughly a fifth less), so allow a little extra output when sizing for a modern low-temperature or heat pump system.

Frequently asked questions

How do I choose the right size?
Work out the heat your room needs with a BTU calculator (it depends on room size, windows and insulation), then pick a size whose output meets or slightly exceeds it. If you are running a lower flow temperature, allow extra.

Which valves do I need?
You will need a pair of 15mm radiator valves. For a matching look choose manual modern radiator valves in white or thermostatic control with the designer TRV twin pack in white. See all radiator valves.

Can it stand on the floor?
Yes, if the wall can't take the weight, use the radiator stand brackets for Type 22 radiators.

Need more or less heat?
Try the Type 11 version. More panels and convectors mean more heat from the same wall space.

Specification

Type: Radiator
Panels: Double Panel Double Convector
Heating type: Central Heating
Valve style: Angled or Straight
Connection size: 1/2" BSP
Guarantee: 10 year manufacturer guarantee

What's in the box

Radiator
Wall brackets and bolts
Air vent and blanking plug

Help choosing

Size a radiator by heat output (BTU), not by how it looks on the wall.

How much heat does your room need?

Length (m) Width (m) Height (m) Room Windows Outside walls

Enter your room size to see the heat output you need.

Match the output to the room. Use the BTU figure from the calculator. In a bathroom, a towel rail alone often heats a small room; bigger rooms may need a radiator too.
Check your connections. Measure the gap between your pipes and choose valves to suit: angled, straight or corner (see the valve helper on our valve pages).
Heat pump? At the lower water temperatures heat pumps run at, expect roughly half the listed output.
Summer use. Central heating rails only warm up when the heating is on. A dual fuel kit adds an electric element where the rail supports it.

Still not sure? Send us your measurements and we'll check for you.

Questions people ask

What does BTU mean?

BTU (British Thermal Units) is the heat output. The higher the figure, the more heat it gives. Use the calculator under Help choosing to see what your room needs. Outputs are quoted at ΔT50.

How much heat do I need?

As a rough guide allow around 100W per square metre of floor in an average room, and more for older properties, high ceilings, large windows or north-facing rooms. Outputs are quoted at ΔT50.

Are valves included?

Radiators are supplied without valves unless the description says otherwise. Add a pair to suit your pipework.

Will it work with a heat pump?

Yes, but heat pumps run at lower water temperatures, so a radiator gives out roughly half its ΔT50 figure. Size up accordingly.

What are pipe centres?

The distance between the two connections. Measure between your pipes and compare it with the pipe centres, allowing for the valves.
