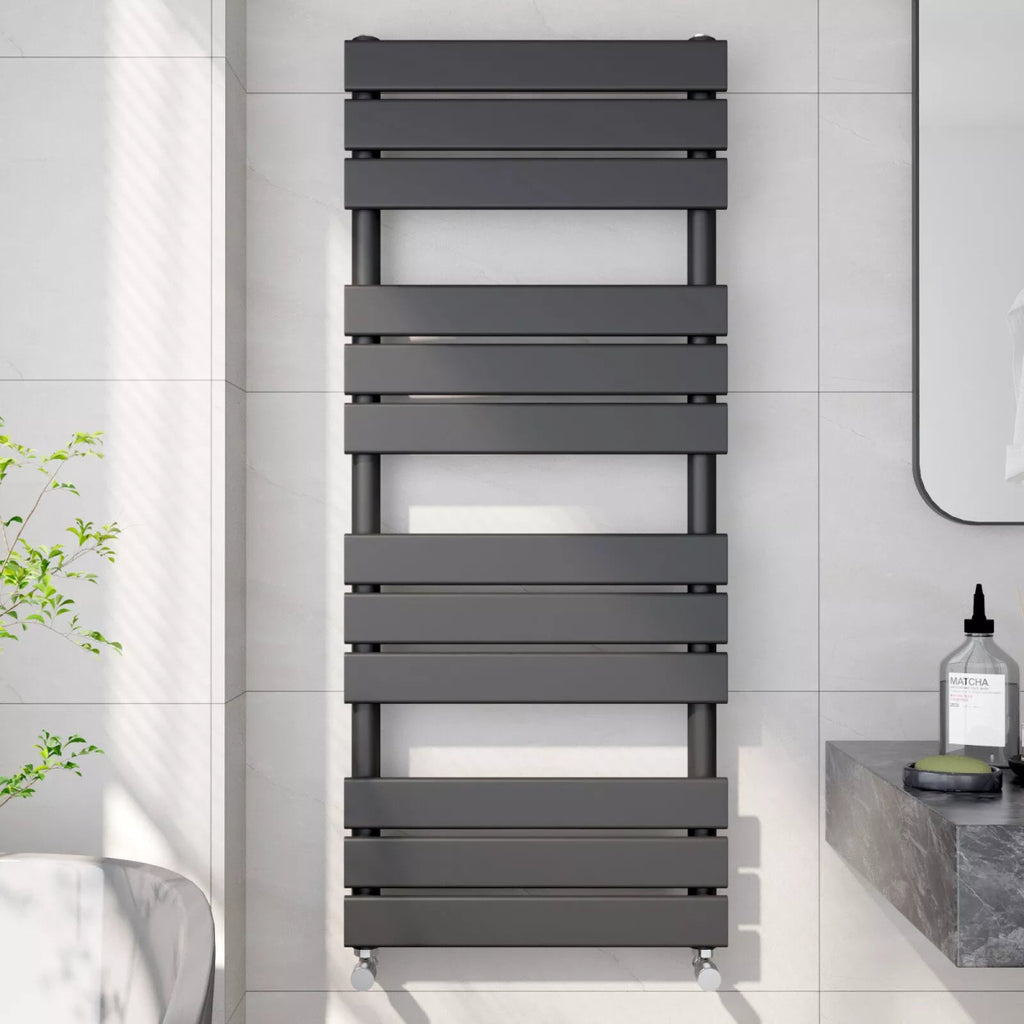

Arvani 1000x500mm Black Heated Towel Rail – Flat Panel, Vertical Mount, Matt Finish

This black Arvani measures 1000x500mm and mounts vertically, which makes it a straightforward fit for a standard family bathroom. Heat output is 1,774 BTU at ΔT50 — 520W in metric.

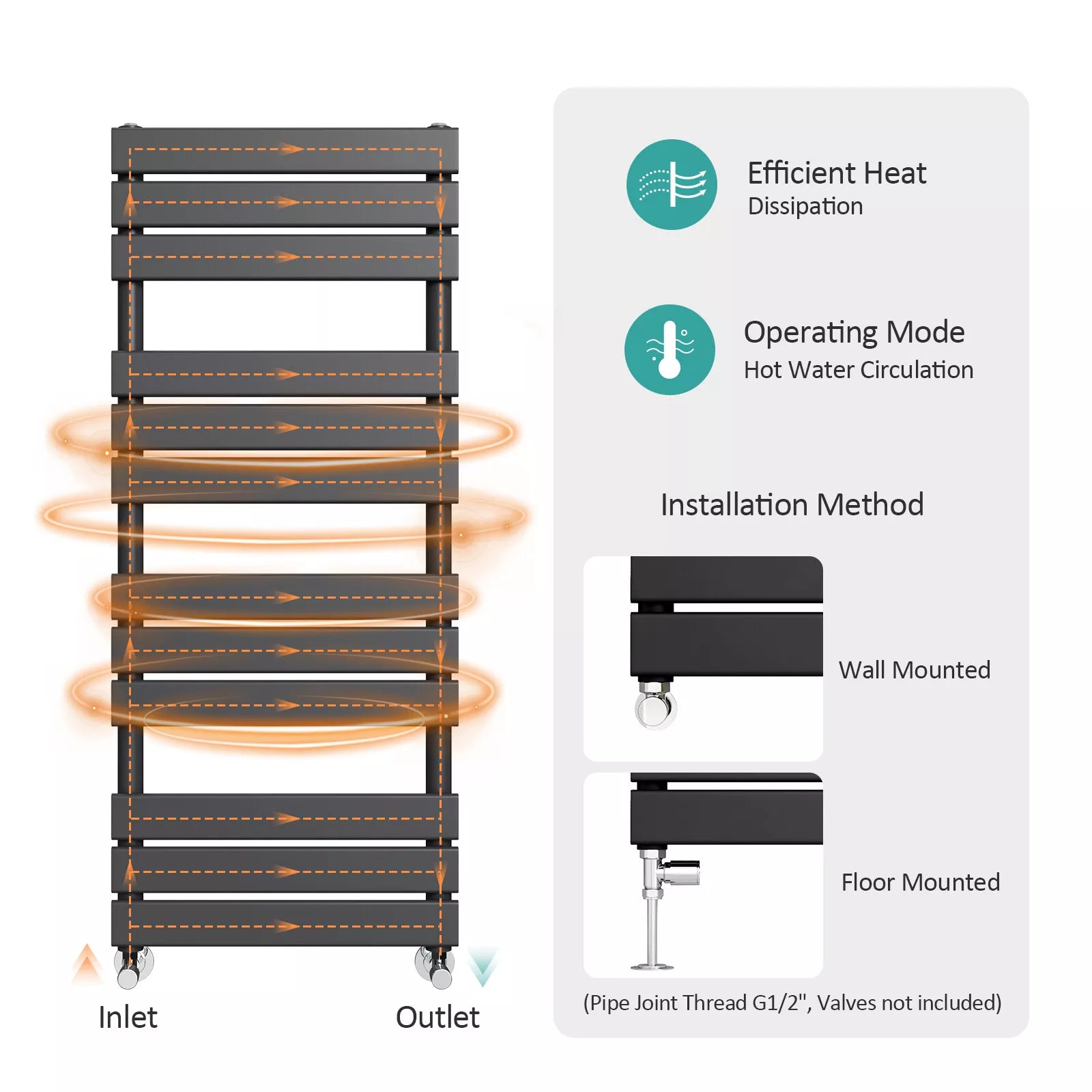

Connections are 1/2" BSP and it needs a pair of 15mm valves, sold separately.

Specification

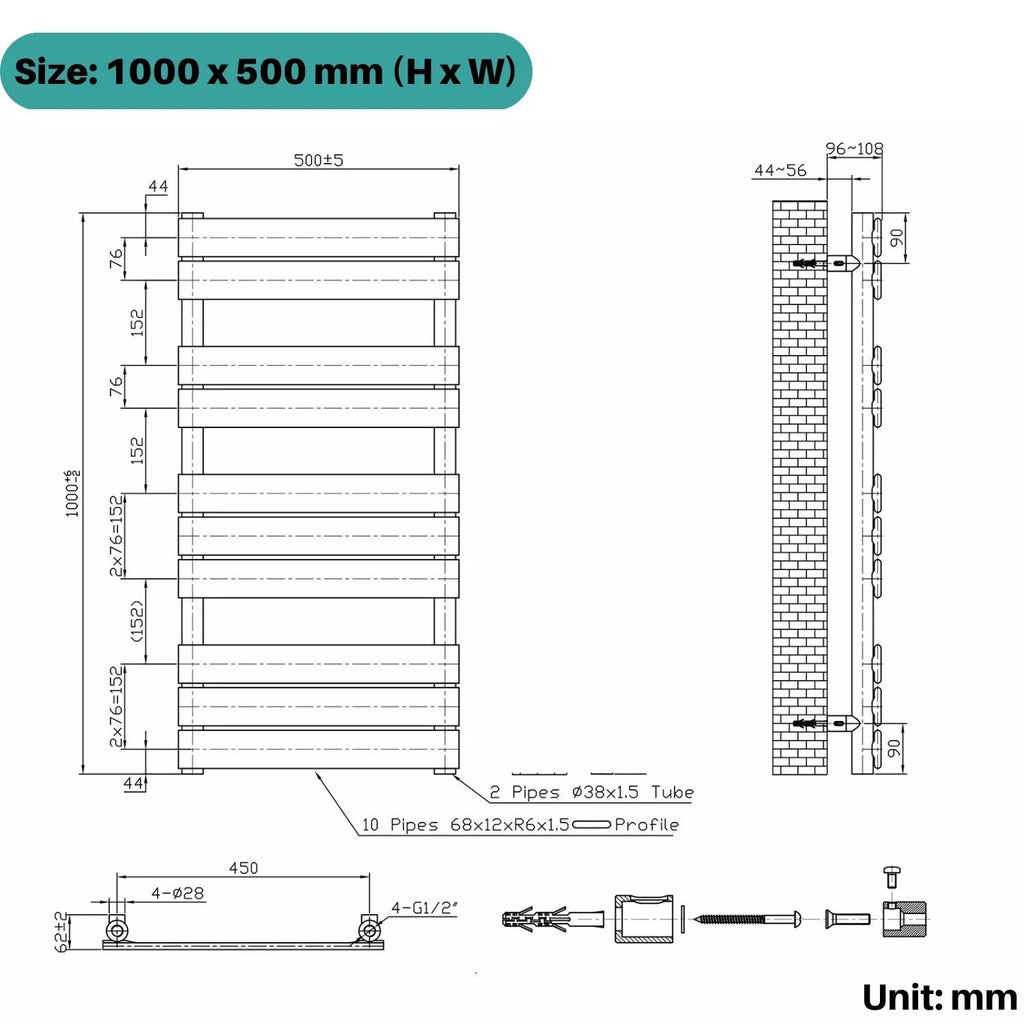

• Size: 1000x500mm

• BTU: 1774 - 1034

• Watt Output: 520 - 303W

• Recommended Area: Up to 6m²

• Modern flat panel radiator in matt black finish

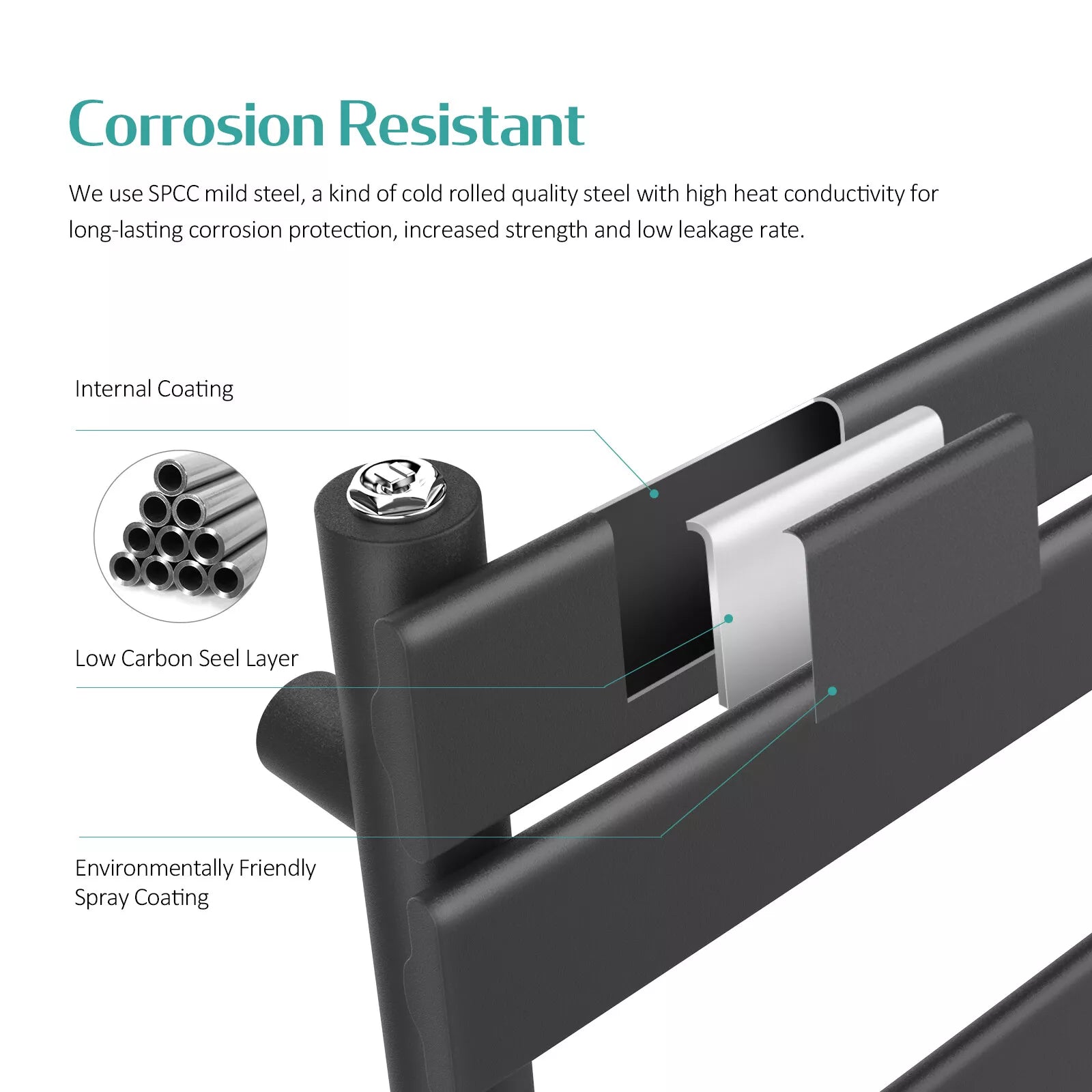

• Made from low carbon mild steel, powder-coated

• Vertical design, UK pipework compatible

• 10 bar pressure tested, BS EN442 certified

• 1/2" inlet/outlet, fits UK plumbing standards

• Valves not included

• 5-year manufacturer warranty

BTU values are provided as a range based on ΔT50°C (standard UK rating) and ΔT30°C (lower temperature systems). Low Output: ≤1200 BTU, Medium-High Output: 1201–1700 BTU, High Output: 1701–2100 BTU.

Frequently asked questions

Will it fit a narrow wall?

It is 500mm wide, so it will go where a conventional radiator will not — between a door and a basin, or on the short return wall of an en-suite. Leave roughly 30mm behind it for the brackets and another 100mm below for the valves.

Will this heat the room on its own?

1,774 BTU covers a room of roughly 6m². Measure your bathroom and run the figure through a BTU calculator — if it comes back higher than 1,774, go up a size or add a second heat source.

Why are two BTU figures quoted?

Heat output depends on how hot the water is. At ΔT50 this rail gives 1,774 BTU; drop the flow temperature, as a heat pump does, and it falls to about 1,034 BTU. Most UK merchants quote the ΔT50 number.

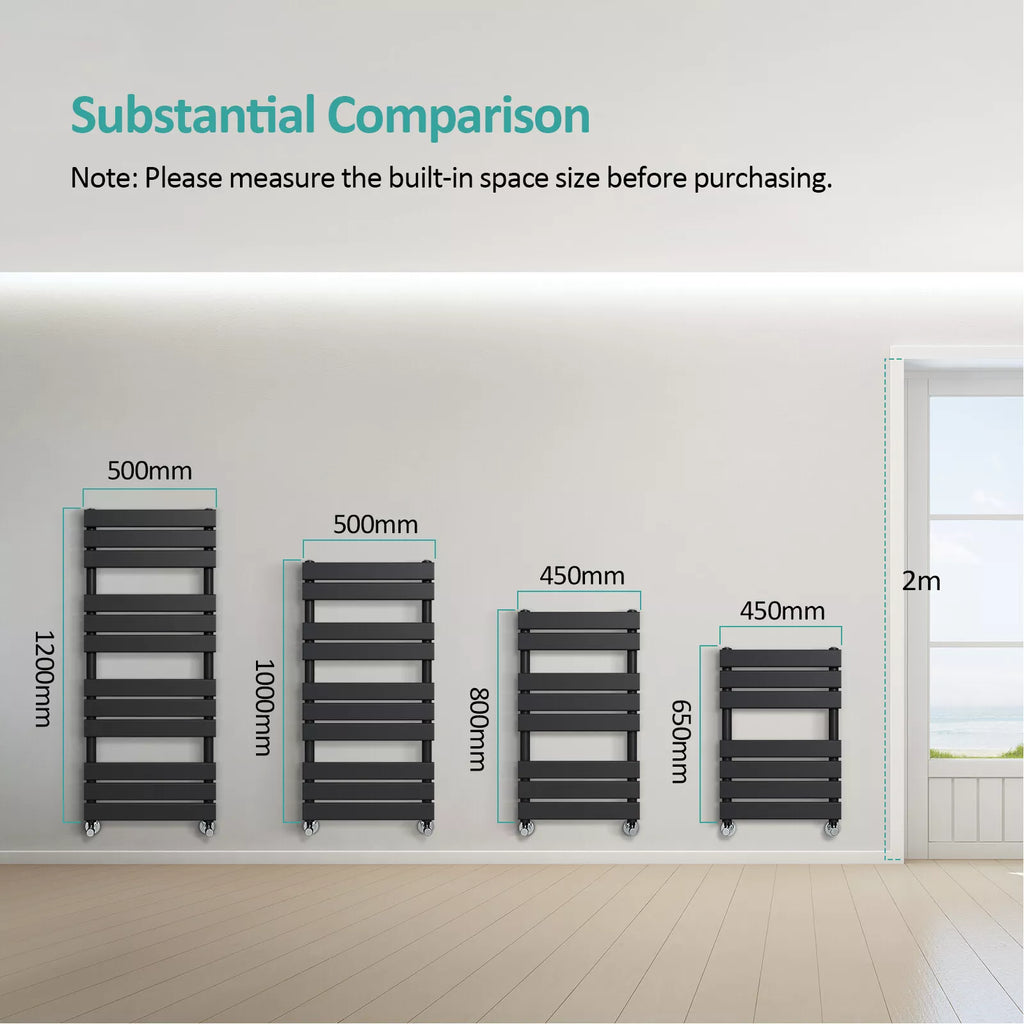

How does it compare with the other Arvani sizes?

The Arvani range runs from 650x450mm at 1,060 BTU to 1200x600mm at 2,487 BTU, in 10 sizes. This one is 1000x500mm and 1,774 BTU, so there is a smaller and a larger option either side of it.
