Arvani 1000x500mm Chrome Heated Towel Rail – Flat Panel Radiator, Gloss Finish

Arvani in chrome is a flat panel towel rail rather than a ladder, so towels hang against a solid warm face. At 1000x500mm it suits a typical three-piece bathroom. It gives 1,732 BTU, or 508W, measured at ΔT50.

Plumbing is standard: 1/2" inlets and outlets, plus a pair of 15mm valves.

Specification

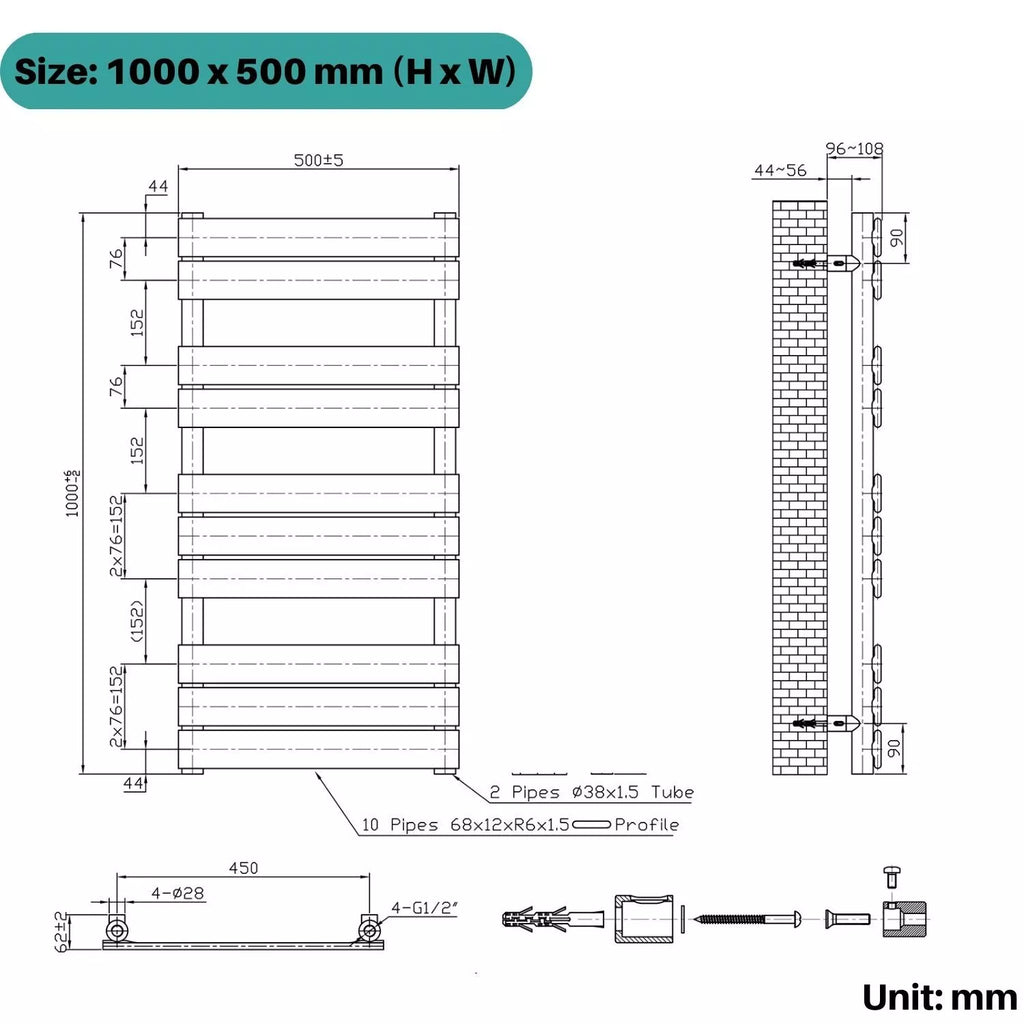

• Size: 1000x500mm

• BTU: 1732 - 900

• Watt Output: 508 - 264W

• Recommended Area: Up to 5m²

• Contemporary chrome towel rail with flat panel design

• Low carbon mild steel construction with high-polish chrome coating

• Vertical installation for efficient use of wall space

• Powerful output – warms towels and small to mid-size rooms

• 1/2" UK compatible connections, 10 bar pressure tested

• Valves sold separately

• 5-year manufacturer warranty

BTU values are provided as a range based on ΔT50°C (standard UK rating) and ΔT30°C (lower temperature systems). Low Output: ≤1200 BTU, Medium-High Output: 1201–1700 BTU, High Output: 1701–2100 BTU.

Frequently asked questions

Will it fit a narrow wall?

At 500mm across and 1000mm tall it is designed for tall, narrow wall space. Measure 500mm plus a little either side for your hands, and allow about 100mm underneath for the valve tails.

Is it enough heat for my bathroom?

1,732 BTU covers a room of roughly 5m². Measure your bathroom and run the figure through a BTU calculator — if it comes back higher than 1,732, go up a size or add a second heat source.

Why are two BTU figures quoted?

Heat output depends on how hot the water is. At ΔT50 this rail gives 1,732 BTU; drop the flow temperature, as a heat pump does, and it falls to about 900 BTU. Most UK merchants quote the ΔT50 number.

How does it compare with the other Arvani sizes?

The Arvani range runs from 650x450mm at 1,060 BTU to 1200x600mm at 2,487 BTU, in 10 sizes. This one is 1000x500mm and 1,732 BTU, so there is a smaller and a larger option either side of it.
